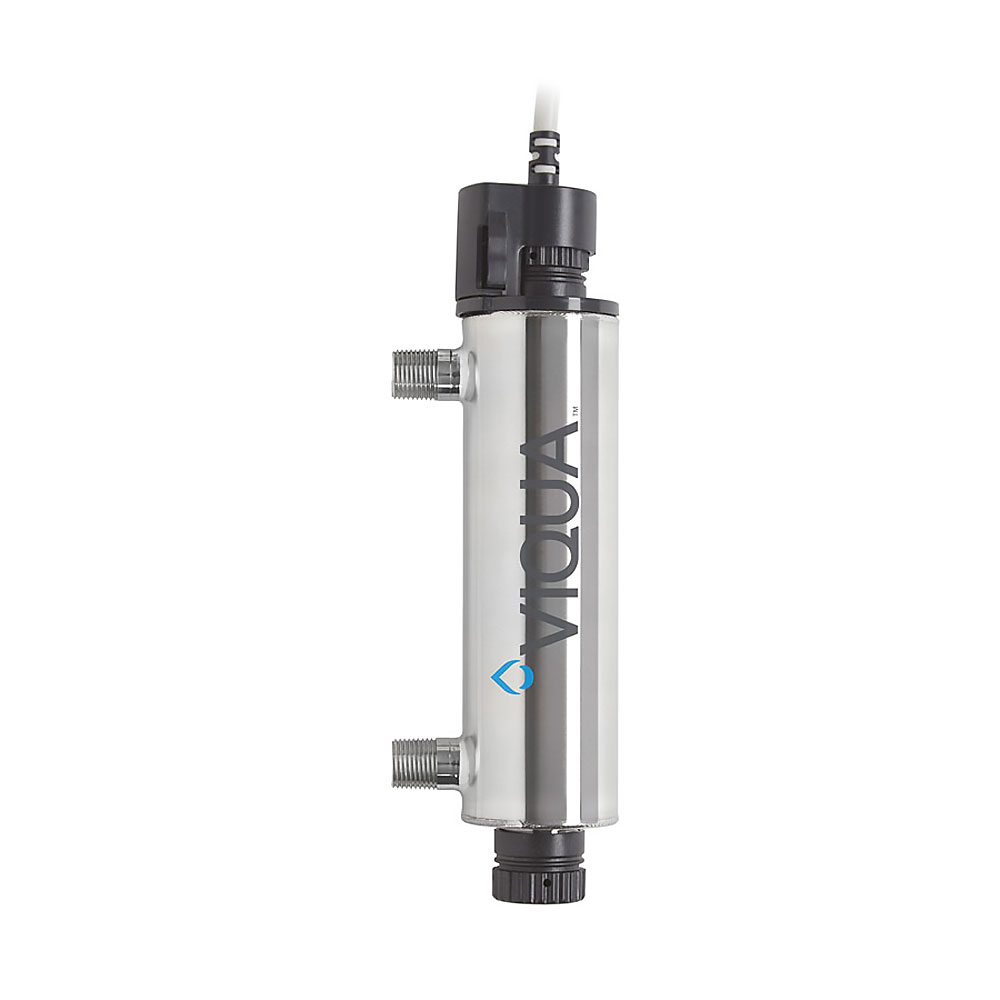

The Sterilight VT1 system operates on 120 volts with a NEMA 5-15p plug, which is a standard North American electrical plug configuration. The system is easy to install and is typically installed under the sink or on a countertop, depending on the specific application. The system comes with a quartz sleeve that surrounds the UV lamp and protects it from damage, as well as an alarm that alerts the user when the lamp needs to be replaced.
The Sterilight VT1 system is designed to provide long-lasting performance and requires minimal maintenance. The UV-C lamp typically needs to be replaced annually to ensure continuous disinfection, but the system itself requires very little upkeep. The system is also energy-efficient, consuming only 16 watts of power during operation.
Disinfection Flow Rate
– 16 mJ/cm2: 2 GPM (8 lpm)
– 30 mJ/cm2: 1 GPM (4 lpm)
– 40 mJ/cm2: 0.7 GPM (3 lpm)
Operating Parameters
– Max. Operating Pressure: 125 psi
– Ambient Air Temp: 32°F – 104° F
– Influent Water Temp: 36°F – 104°F
– Installation Orientation: Vertical or Horizontal
Electrical
– Voltage: 100-240 VAC
– Frequency: 50-60 Hz
– Max Current: 0.2 A
– Power Consumption: 16W
Dimensions
– Chamber: 12.5″ x 2.5″
– Controller: 5.25″ x 2″ x 1.75″
– Inlet/Outlet: 3/8″-1/2″ Combo Npt
– Shipping Weight: 4 lbs
Features
– Chamber Material: 304SS
– Visual “Power On”: Yes
– Visual Lamp Life Remaining: No
– Audible Lamp Failure: No
– Audible Lamp Replacement Reminder: No
Replacement Parts
– Lamp/Quartz Sleeve Kit: S212-QL
– UV Lamp Only: S212RL
– Quartz Sleeve Only: QS-212
– Controller: BA-VT
