water softener with Fleck 5810 XTR2 valve

3 stage water softener with Fleck 5810 XTR2 valve

fleck 5810 XTR2 blue front water softener valve

Fleck 5810 XTR2 grey left side water softener valve

3 Stage Water softener with Fleck 5810 XTR2 Upflow/Downflow Control Valve

$1,723.75 – $3,473.75

The 3 Stage Water Softener with 5810 XTR2 valve is compact, efficient and at a good price, this whole house water softener system will serve you well by using ion exchange process to remove the calcium and magnesium and extend the life of your plumbing and appliances. Current design allows for a full ¼ – ½ cu. ft. of GAC to reduce organics, chemicals, pesticides, chlorine, chloramines and much more. The softener tank contains 1, to 2½ cu. ft. of high quality resin.

This control valve can be set up Upflow or Downflow for regeneration. Downflow is the default setting for the control valve. The downflow setting is the most reliable.
Upflow settings could be set up ONLY on customer request.

(Installation is not included in the price.)

Brand: WPS inc.

MPN: 3stsoft5812xtr2

Water Softener Size

Clear

SKU: N/A Categories: Filtration Systems By Contaminants, Limescale & Hard Water Solutions, Water Conditioning Systems, Water Softeners, Whole House Water Filtration Systems Tags: Activated Carbon, Coconut shell carbon, Quartz media, Softening resin

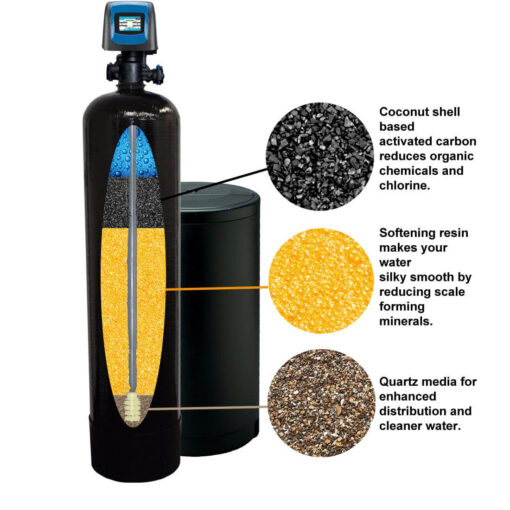

Coconut shell based activated carbon reduces organic chemicals and chlorine.

Softening resin makes your water silky smooth by reducing scale forming minerals.

Quartz media for enhanced distribution and cleaner water.

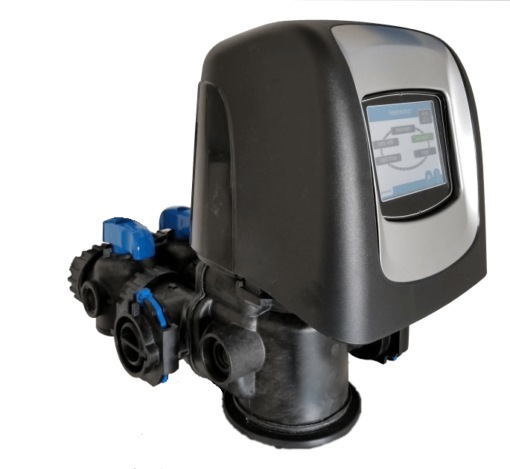

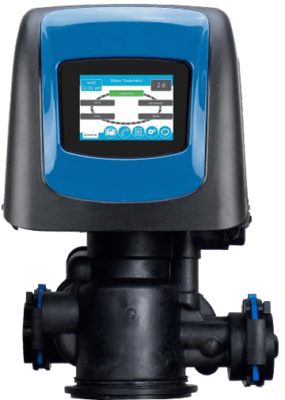

Fleck 5810 XTR2
Upflow/Downflow Valve

Control valve fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant.

Premium touch screen LCD display with two programmable relay outputs for both normally opened and normally closed contacts
Programming stored in memory and will not be lost due to power outages
Optical sensor for precision cycle positioning
Soft water refill for a cleaner brine tank

SPECIFICATIONS

Continuous flow rate @ 15 psi drop: 36 gpm
Max. Backwash flow @ 25 psi drop: 28 gpm
Inlet outlet connection type - valves: npt, bsp, sweat, cpvc
Inlet outlet size - valves: 3/4", 1", 1-1/4"

Available Upflow or Downflow settings:

Standard Downflow Single Backwash
Standard Downflow Double Backwash
Upflow Brine First
Upflow Brine Backwash First
Upflow Fill First

Attention! This product requires Professional Installation. This product should be installed/connected by a licensed contractor for correct installation and the best results.
